Raptor SR dla Mavic 4 series w/ DJI RC2 Controller [A151S] - antena zwiększająca zasięg - 4Hawks

Nowość

Raptor SR dla Mavic 4 series w/ DJI RC2 Controller [A151S] - antena zwiększająca zasięg - 4Hawks

Dostępność: Dostępny

Kod producenta: A151S

Kod EAN: 5907222689264

Zapytaj o produkt Poleć znajomemu Specyfikacja PDF

Opis produktu
Recenzje produktu (0)

Features:

Ergonomic, light and compact size range extender for DJI RC2 Controller
Boost your performance and expand your drone range up to 2x times !
Concurrent dual band 2.4 & 5GHz
Double polarization (horizontal + vertical)
No modification to the drone itself
Long range extension thanks to unique passive antenna design, without external boosters and amplifiers
Complete solution with all accessories and tools included

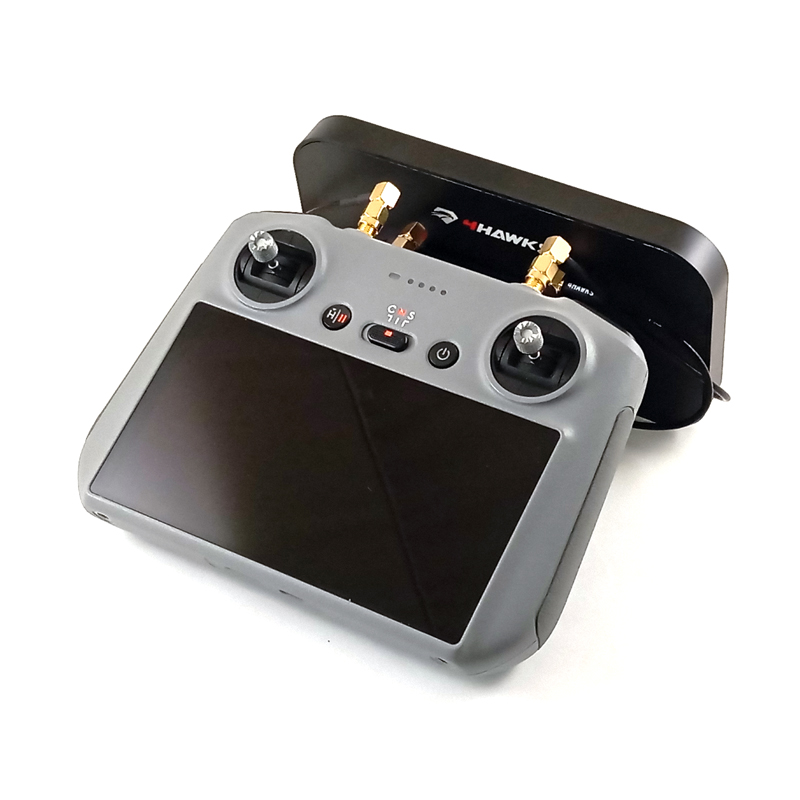

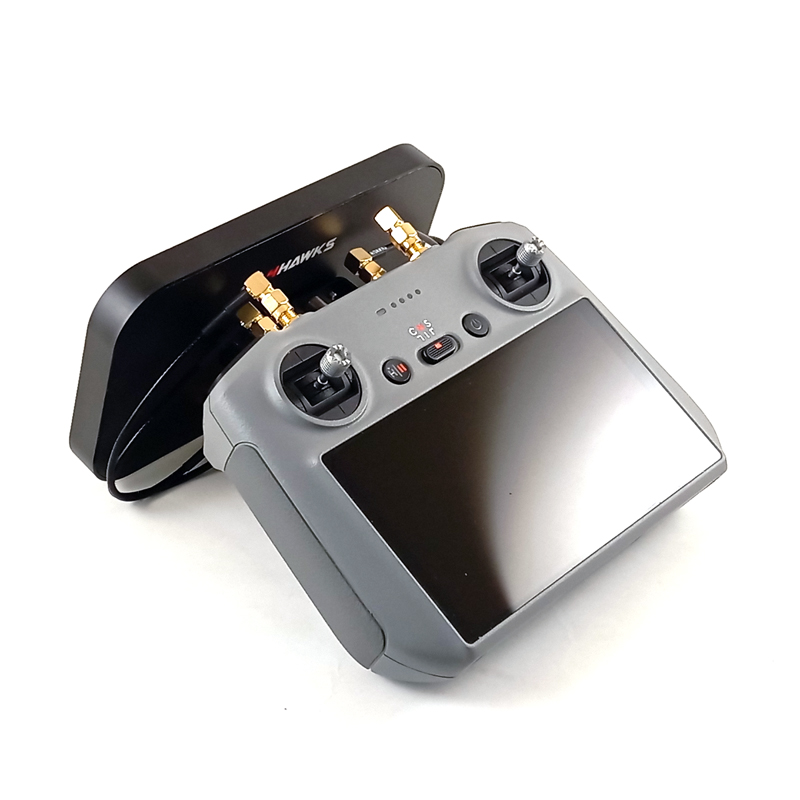

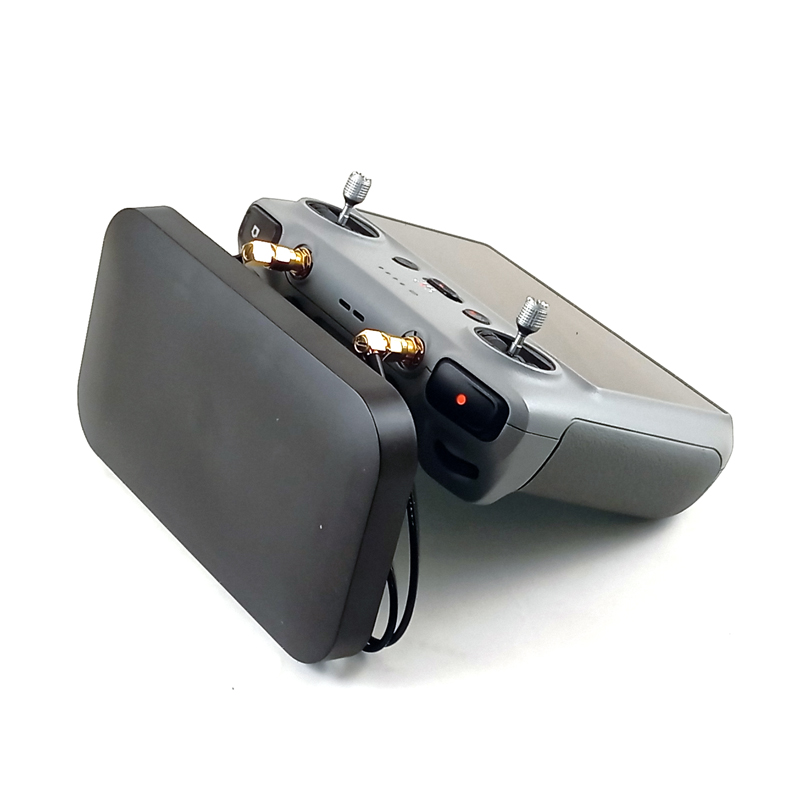

Controller (shown on the picture) NOT included

Designed for DJI RC Controller

Maximize your drone range with our new SR antenna designed for DJI RC2 controller !

Reach further distances with your drone using our special passive antenna solution (no amplifier needed!)

Thanks to maximizing the antenna size and using an external mount - we've replaced 2 internal and 2 external small-size antennas with 4 double-band large-sized ones, which should result in approximate doubling the drone operational range.

Additionally, you will also receive much better video streaming quality at the whole drone travelling distance.

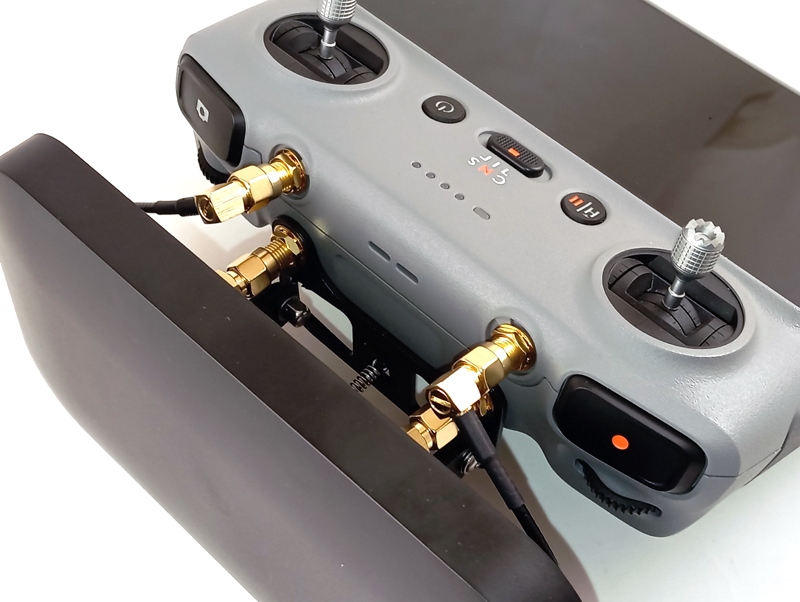

Installing the A148 antenna on your DJI RC2 transmitter requires modification to the transmitter. During installation, it will be necessary to open the controller, uninstall the two internal antennas, and remove the two external omnidirectional antennas (if necessary - the removal process is reversible and it will be possible to restore them). It will also be necessary to drill two holes for new SMA ports on the top panel of the controller (this is the only irreversible change that needs to be made to the transmitter).

The antenna modification process should take approximately 1-2 hours of work. Together with the antenna, you will receive a detailed, pictorial and descriptive step-by-step manual.


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1 - 4: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz [each]

Gain

Port 1 - 4: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi) [each]

VSWR

Port 1 - 4: < 1.50 (max. < 2.15) [each]

Beamwidth

Port 1 - 4: 90°/65° & 55°/55° [each]

Polarization

Port 1: Vertical
Port 2: Horizontal
Port 3: Horizontal
Port 4: Vertical

Impedance

Port 1 - 4: 50 Ω [each]

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, FR4 & PTFE PCB
Mounting: Stainless steel + paint

Weight

~ 200g (120g Antenna + 80g Mounting)

Dimensions

16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch

Connection

Port 1 - 4: RP-SMA female [each]

Tilt adjustment

3 tilt positions

Mounting type

On SMA connectors (Permanent)

alt

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.

alt

Strona WWW producenta:

www.4hawks.com

Dane kontaktowe producenta:

4Hawks, Polna 1, 52-116 Iwiny, Polska, e-mail: office@4hawks.com, telefon: +577667761
