Raptor XR dla Mavic 4 series w/ DJI RC2 Controller [A151X] - antena zwiększająca zasięg - 4Hawks

Dostępność: Dostępny

Kod producenta: A151X

Kod EAN: 5907222689271

Zapytaj o produkt Poleć znajomemu Specyfikacja PDF

Opis produktu
Recenzje produktu (0)

Features:

Most powerful 4Hawks range extender designed for DJI RC2 Controller
Maximize performance and expand your drone range up to 4x times !
Concurrent dual band 2.4 & 5GHz
Double polarization (horizontal + vertical)
No modification to the drone itself
Long range extension thanks to unique passive antenna design, without external boosters and amplifiers
Complete solution with all accessories and tools included

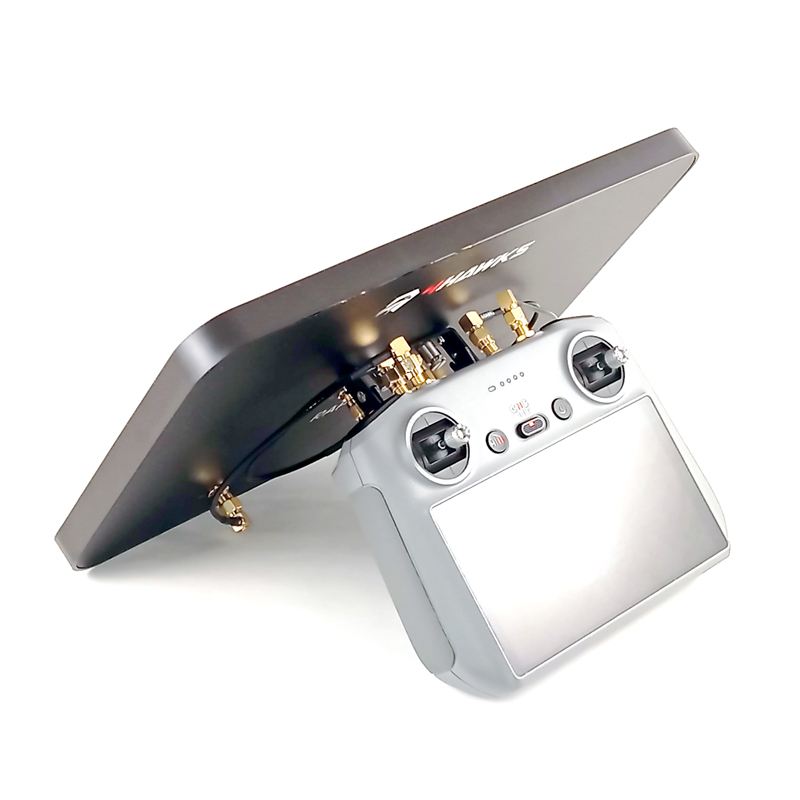

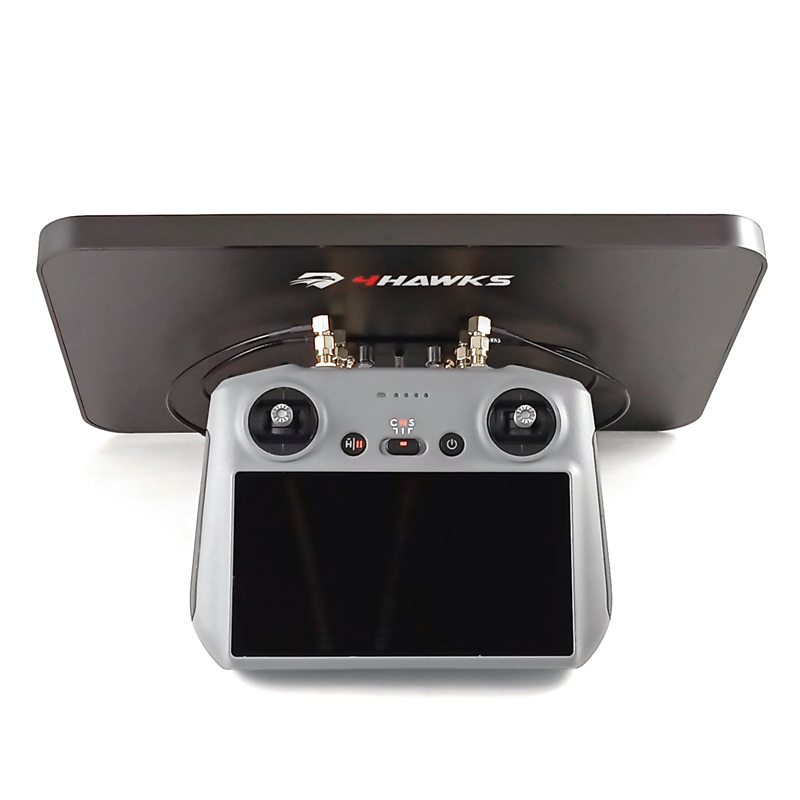

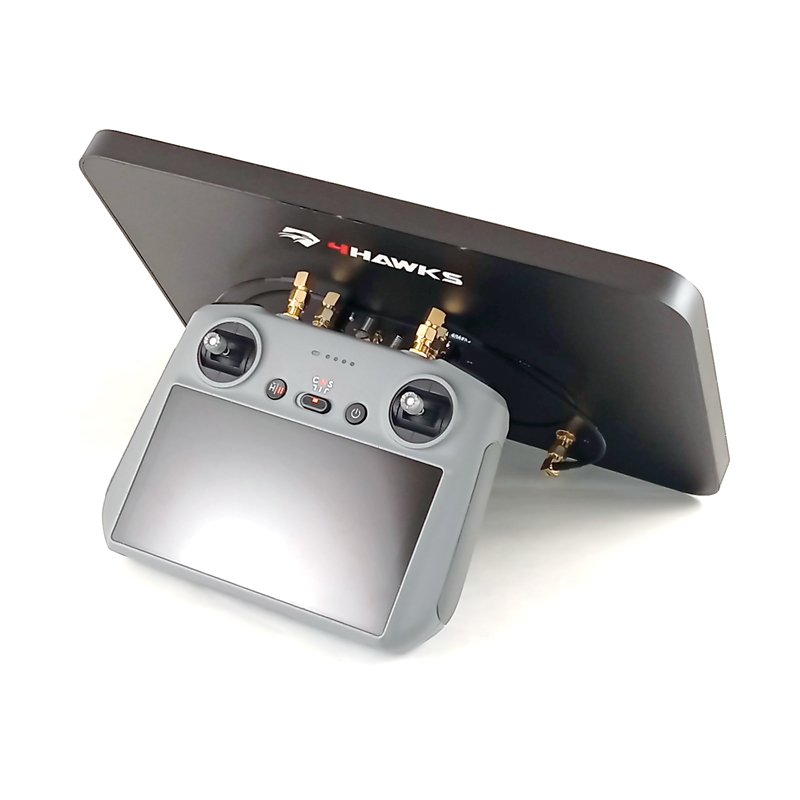

Controller (shown on the picture) NOT included

Designed for DJI RC PRO Controller

Maximize your drone range with our new Raptor XR, our most powerful antenna designed for DJI RC2 controller !

Reach further distances with your drone using our special passive antenna solution (no amplifier needed!)

Thanks to maximizing the antenna size and using an external mount - we've replaced 2 internal and 2 external small-size antennas with 4 double-band large-sized ones, which should result in approx. 4-times longer operational range.

Additionally, you will also receive much better video streaming quality at the whole drone travelling distance.

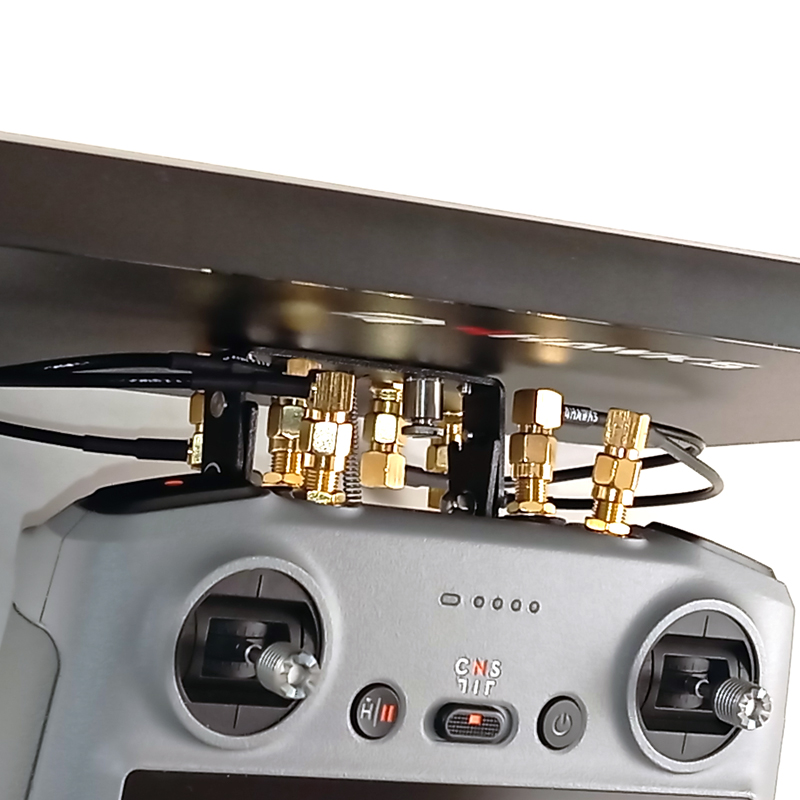

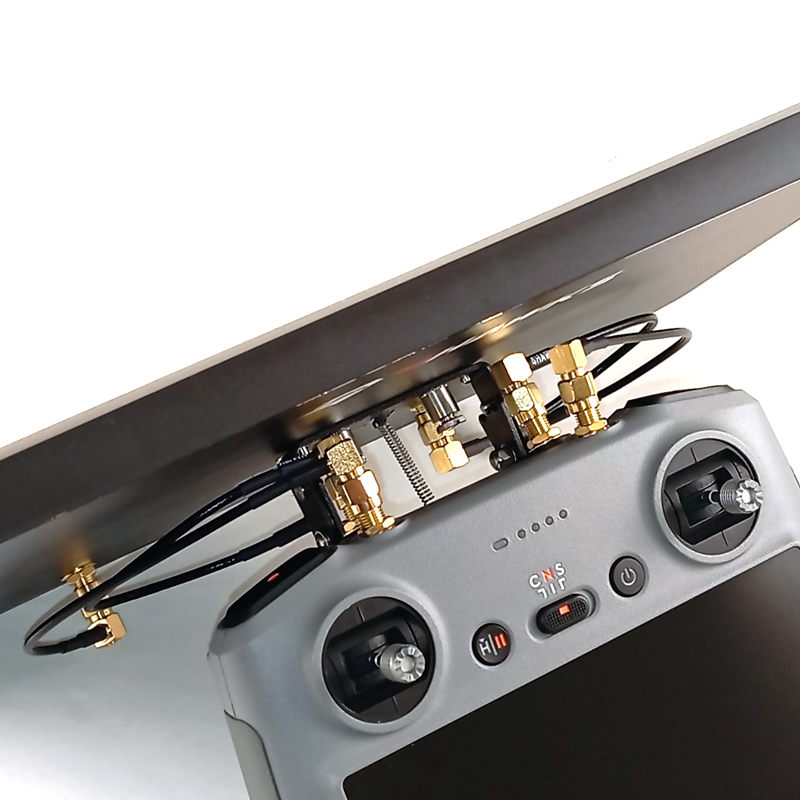

Installing the A148 antenna on your DJI RC2 transmitter requires modification to the transmitter. During installation, it will be necessary to open the controller, uninstall the two internal antennas, and remove the two external omnidirectional antennas (if necessary - the removal process is reversible and it will be possible to restore them). It will also be necessary to drill two holes for new SMA ports on the top panel of the controller (this is the only irreversible change that needs to be made to the transmitter).

The antenna modification process should take approximately 1-2 hours of work. Together with the antenna, you will receive a detailed, pictorial and descriptive step-by-step manual.


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 3: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 4: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz

Gain

Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 3: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)
Port 4: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.00)
Port 2: < 1.50 (max. < 2.00)
Port 3: < 1.50 (max. < 2.15)
Port 4: < 1.50 (max. < 2.15)

Beamwidth

Port 1: 70°/40° & 40°/25°
Port 2: 70°/40° & 40°/25°
Port 3: 90°/65° & 55°/55°
Port 4: 90°/65° & 55°/55°

Polarization

Port 1: Vertical
Port 2: Vertical
Port 3: Horizontal
Port 4: Horizontal

Impedance

Port 1: 50 Ω
Port 2: 50 Ω
Port 3: 50 Ω
Port 4: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel + paint

Weight

~ 520g (450g Antenna + 70g Mounting)

Dimensions

29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female
Port 3: RP-SMA female
Port 4: RP-SMA female

Tilt adjustment

3 tilt positions

Mounting type

On SMA connectors (Permanent)

alt

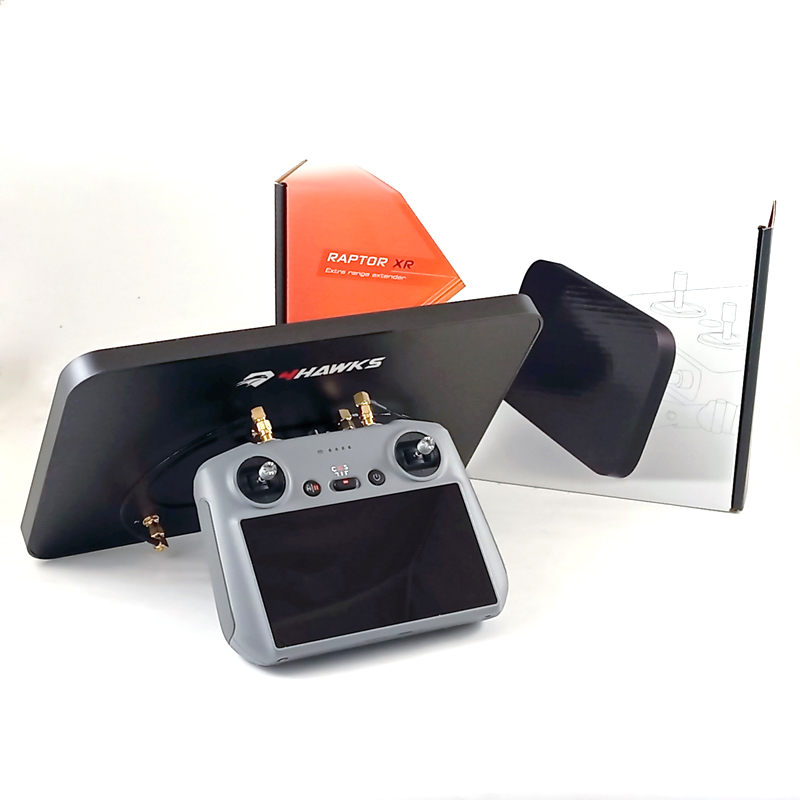

In the box

Accesories included to the Raptor range extender antenna.


Range extender antenna	Stainless steel mounting kit	4x RP-SMA male RG316 black pigtails 2x Pigtail SMA R/A - U.FL / 1.13 2x Pigtail SMA - U.FL / 1.13


2x screwdriver (Torx T6 & Philips) + 8mm wrench		Additional Mavic tools

alt

Strona WWW producenta:

www.4hawks.com

Dane kontaktowe producenta:

4Hawks, Polna 1, 52-116 Iwiny, Polska, e-mail: office@4hawks.com, telefon: +577667761
