Raptor SR dla DJI RC Plus 2 Controller (M4T) [A150S] - antena zwiększająca zasięg - 4Hawks

Nowość

Raptor SR dla DJI RC Plus 2 Controller (M4T) [A150S] - antena zwiększająca zasięg - 4Hawks

Dostępność: Dostępny

Kod producenta: A150S

Kod EAN: 5907222689240

Zapytaj o produkt Poleć znajomemu Specyfikacja PDF

Opis produktu
Recenzje produktu (0)

New release (May 2025)

Raptor XR range extender designed for DJI PLUS 2 Controller - Compact sized and lightweight, panel-type directional antenna delivered as a complete solution to extend (even up to 2x !) the range of your drone. Working in concurrent dual band (2.4 + 5 GHz), and perfectly matched with DJI PLUS 2 controllers, enhances the signal strenght, expands the range and delivers crystal-clear video even at the furthest distance of your drone's route.

No need to modify the drone and the controller, so you always can return to your stock (factory) antenna setup.

Set includes all you need to install, connect and work with Raptor XR antenna with your DJI RC PLUS 2 Controller.

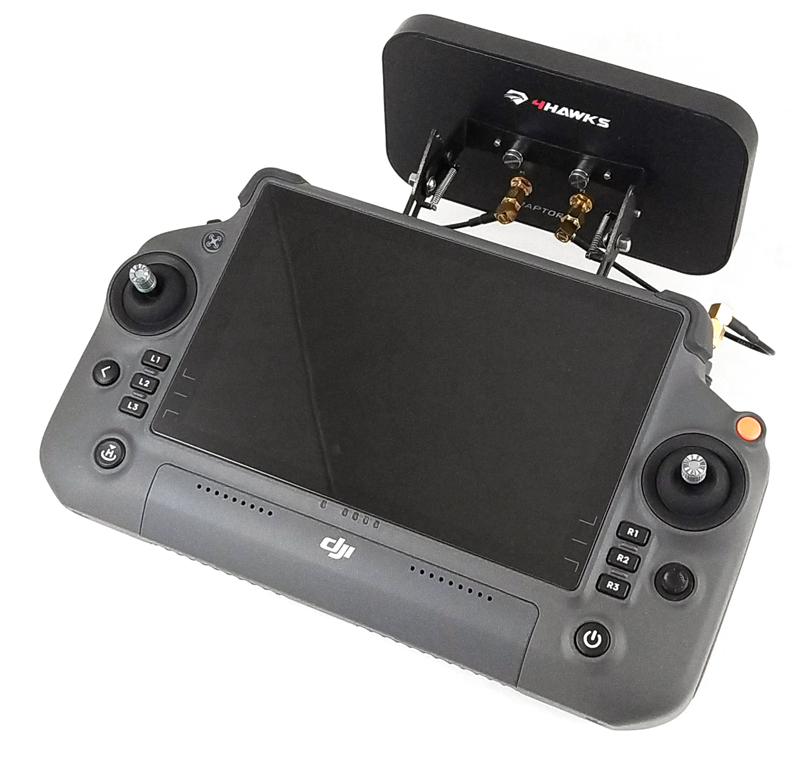

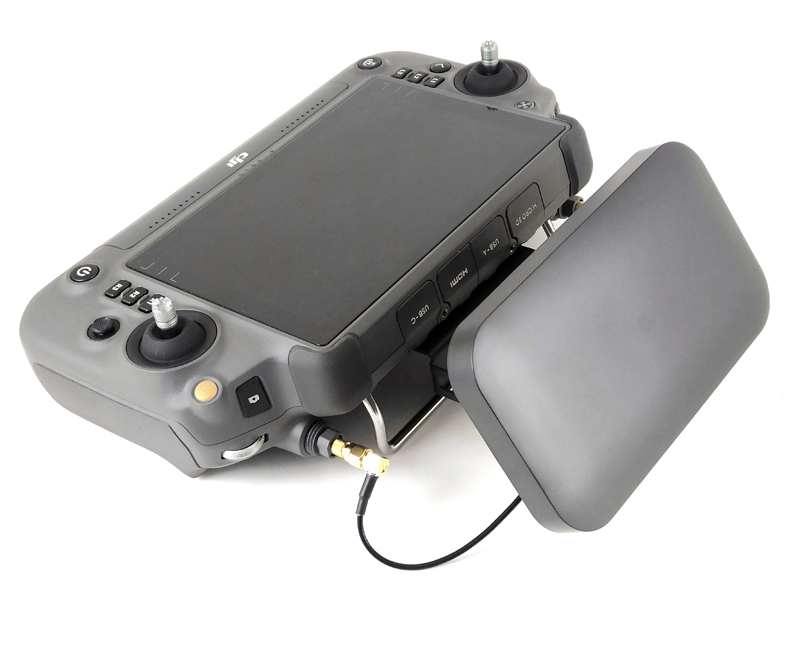

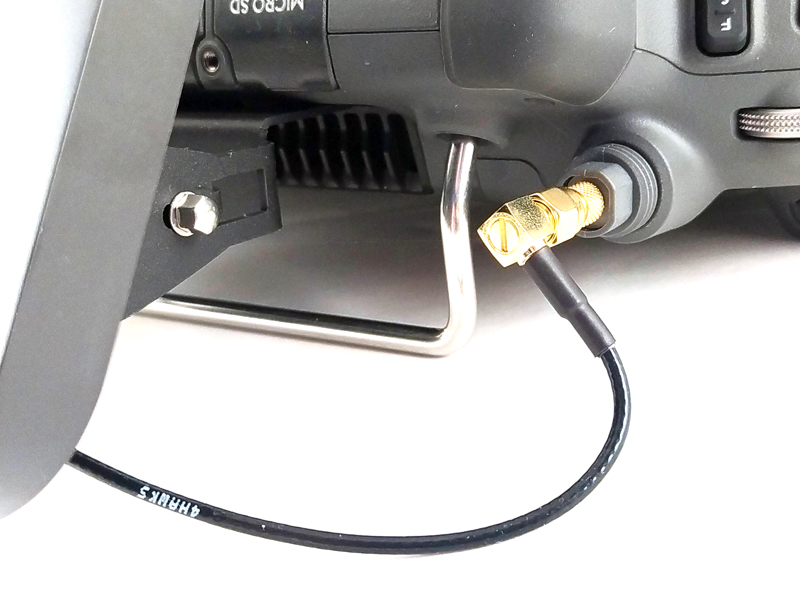

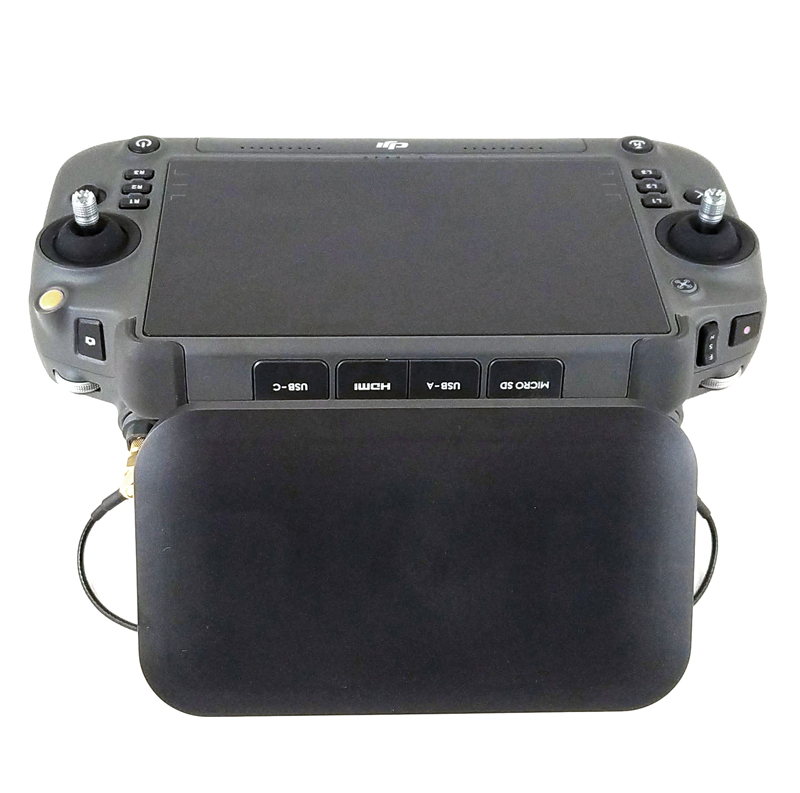

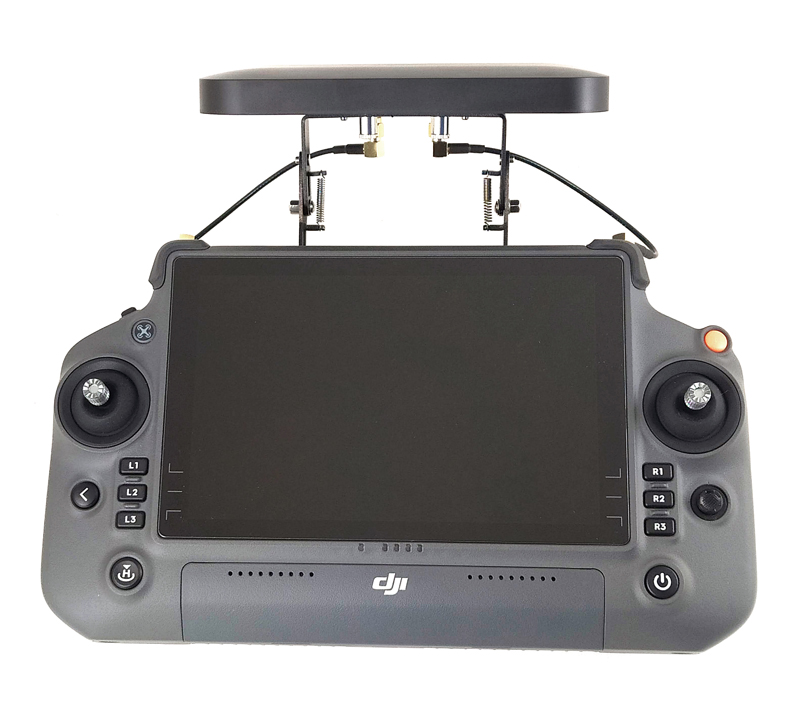

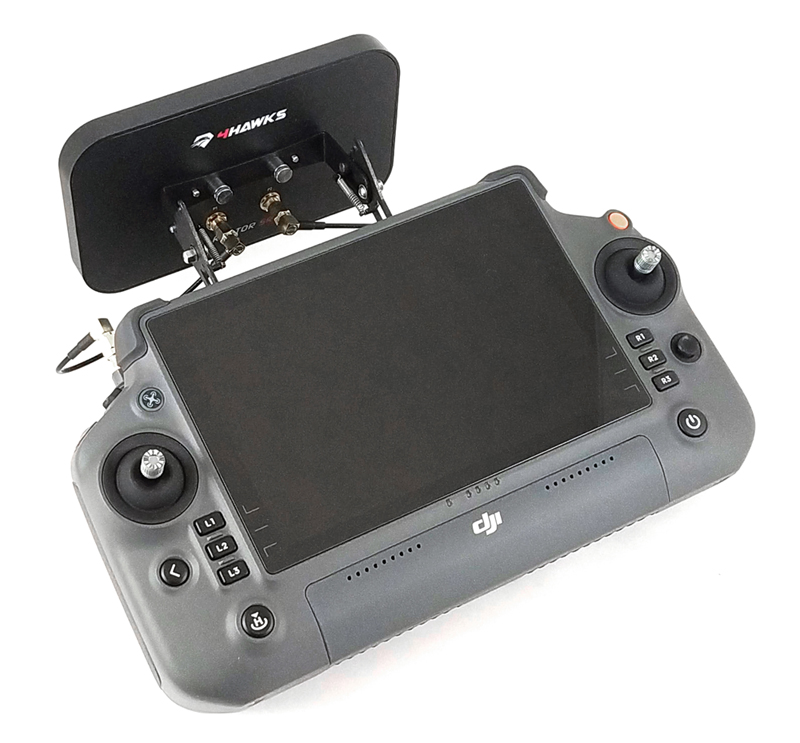

Installation takes just about a minute of your time. Simply detach the stock antennas and replace these with our Raptor panel antenna, using included stainless steel mounting bracket (all screws and keys included) and pair of connection cables with SMA-MCX adapters. Additional 3D-printed sleeves will prevent the cable connectors from playing, ensuring a solid connection.

Features:

Maximize performance
Concurrent dual band 2.4 & 5GHz
No modification to the drone itself
Long range extension without external boosters
Design does not contain any removable parts
Complete solution
Controller NOT included

Designed for DJI RC Plus Controller

Raptor SR for DJI RC Plus Controller (M30T)


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz

Gain

Port 1: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)
Port 2: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.15)
Port 2: < 1.50 (max. < 2.15)

Beamwidth

Port 1: 90°/65° & 55°/55°
Port 2: 90°/65° & 55°/55°

Polarization

Port 1: Vertical
Port 2: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel + paint

Weight

~ 180g (110g Antenna + 70g Mounting)

Dimensions

16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

Tilt adjustment

5 tilt positions, OnClick system

alt

In the box

Accesories included to the Raptor range extender antenna.


Range extender antenna	Stainless steel mounting kit	2x RP-SMA male RG316 black pigtails


2x MCX-SMA Adapter	8mm wrench, 1,5 hex, 2,5 hex	Mounting socket screws

alt

Strona WWW producenta:

www.4hawks.com

Dane kontaktowe producenta:

4Hawks, Polna 1, 52-116 Iwiny, Polska, e-mail: office@4hawks.com, telefon: +577667761
